AXIS 19mm - Aluminium 75cm Foil Mast

The AXIS Foil Plate mount is made with high grade Aluminium, 3d CNCed and anodized. This is not your off the shelf plate mount. This is a beautifully engineered and very stiff piece, designed to hold the mast of your foil tightly and strongly. Multiple holes give you flexibility with positioning on your foil board. And the sliding endings, let you remove the plate by just loosening the screws, w/out having to fully unscrew the M8 bolts from your board.As with all of our products, this plate is Designed in New Zealand.

Used to connect your 19mm Mast to your Fuselage. AKA "Doodad"

The following are included in our Screw & Key Set: 2 x M8*35 Countersunk 316 grade Torx drive Stainless Steel screws 2 x M8*70 Countersunk 316 grade Torx drive Stainless Steel screws 2 x M8*30 Countersunk 316 grade Torx drive Stainless Steel screws Torx Key for M8 Torx Key for M6 2 x M6*14 Countersunk 316 grade Torx drive Stainless Steel screws 2 x M6*22 Countersunk 316 grade Torx drive Stainless Steel screws 2 x M6*25 Countersunk 316 grade Torx drive Stainless Steel screws 4 x mast track sliders 4 x M8 x 25 Countersunk 316 grade Torx drive Stainless Steel screws 4 x M8 x 20 Countersunk 316 grade Torx drive Stainless Steel screws 2 x M8 x 16 Countersunk 316 grade Torx drive Stainless Steel screws

The AXIS Red Standard Fuselage is a 3D CNC cut anodized aluminium fuselage, length is 765mm long. Incredibly strong connection to any size wings to create a very direct feel from your feet to the front wing, which is the most important part of surf foiling. Please note: you will need the AXIS Mast Adapter aka the Doodad (in 19mm and 16mm), in order to use with the AXIS Foils Aluminium masts. The doodad is not needed when using the AXIS Foils Carbon Masts   Available in multiple sizes for different types of riding. (the longer the fuselage the more stable the ride. The shorter the fuselage the looser and quicker the turning)

The original PNG 1300, introduced in 2020, was a groundbreaking foil, with its impressive 1300mm wingspan and a high aspect ratio of 9.94; a foil that is not only large in surface area but also remarkably efficient and fast; a foil way ahead of its time and extremely popular in the recent seasons.The advent of the downwind foiling discipline saw the PNG 1300 become the go-to foil for beginners entering the challenging world of downwind. Its exceptionally low stall speed enables early take-off, while impressive glide, acceleration and controlled speed has allowed riders to connect bumps and maintain momentum in weak to moderate swell and wind conditions. Its intuitive pumping characteristics make it easy to recover from mistakes and navigate, even if you’re not yet skilled in the art of finding the perfect line to link the bumps.When developing the AXIS PNG 1300v2, we were determined not to compromise on any of these outstanding features. We have succeeded in enhancing every detail and adding a few more you wouldn’t imagine possible on a wing of this size.The completely reimagined new PNG 1300v2 now runs on our Black fuselage series (we recommend our latest Black Advance+ range).The AXIS PNG 1300v2 boasts low stall speeds, lower drag, better acceleration, better turning and a significantly higher top-end speed –  thanks to its finely tuned High Camber (High-lift) / Low-drag foil section.The PNG 1300v2 has reduced surface area (1632 sq cm) compared to the previous PNG 1300 (1712 sq cm), but with the addition of its new foil section, it achieves the same capacity for early lift.Vastly improved turning and a balanced lift distribution ensure a smooth, stable and comfortable ride, with predictable pitch control that makes navigating between bumps and pumping a breeze.This stability is crucial for light wind or novice downwinders, offering a more agile manoeuvrable experience than the original PNG 1300. We’ve also extended its glide range, for unlocking new distances and manoeuvres when pumping flat water. You’ll be amazed at how much further you can glide between pumps without losing speed or height.All these features make the AXIS PNG 1300v2 an amazing addition for dock starters, of all levels. The lower drag, improved glide and reduced stall speed are fantastic for those who are progressing and have found that the bigger slow wings are just not much fun anymore.Use the PNG 1300v2 for SUP/Prone surfing when in smaller or lower energy surf. The amount of lift that the wing creates to get you moving and stay up on micro-waves is astounding.And let’s not forget that the AXIS PNG 1300v2 transforms what’s possible for some of the lightest winds while winging. The new AXIS PNG 1300v2 will get you flying before others and start enjoying again ultra light wind winging.

NEW for the Black Advance+ Series we have added a discretely placed Zinc Anode, which we have integrated into the front wing attachment area.All AXIS Black Advance+ Fuselage have updated shapes and are now shipped with all the screws you need to attach your favorite wings and mast. These are pre-lubed, ready to ride straight out of the bag.If you're into pushing the envelope in wave riding (Prone, SUP, Wing or Wake) these will blow your mind. Are you looking to push harder, carve tighter turns and want an even more connected surf experience? Our new Black ADVANCE+ fuselage configuration is for you. This design sees the mast position advanced 60mm closer to the front foil (compared to our regular fuselages), opening up entirely new options for surf performance. Our Current Black fuselage range is perfectly suited to the majority of riders across all disciplines, while these new Black ADVANCE+ fuselages are not intended to replace them but provide options for performance and a more connected feel when pushing the limits. If you are an intermediate or expert surf / wave foiler, this could be a great upgrade for you. A consideration when moving the mast position on the fuselage forward is that the effective length of the rear fuselage back to the rear stabilizing foil is increased by the distance the mast moves forward. When choosing your Advance Black Fuselage, it’s advisable to take this into consideration and perhaps opt for a length shorter than you are used to using. If you’re currently using an Ultrashort, you might consider the Crazyshort instead. Available in Short, Ultrashort, Crazyshort and Sillyshort  and Psychoshort (just 520mm). Compared to our Standard Black fuselage range, the Advance+ provide a looser, faster transition from side-to-side. The sensation our testers liked it for is similar to the sensation of moving fins forward in the tracks on a surfboard, initiating turns becomes easier, which is great in the surf. There is a small trade-off, this ease of turning comes as at the expense of some tracking and speed stability. (So expect to have a small effect on upwind ability when winging and a need to adjust pumping technique slightly. If you are into ultra high speed big wave riding, you should consider the regular black fuselages instead).With the mast set further forward on the fuselage, your baseplate position needs to be further forward in the boxes to position the wings in the same position as the normal Black fuselageIn an effort to reduce our cardboard footprint, these new Black ADVANCE+ fuselages come with our new custom fuselage protective covers, and no paper / cardboard boxes.

The development of the much faster-running ARTPRO wings prompted us to begin experimenting with reduced chord rear stabilisers to maximise this newfound speed advantage. With minimal span changes (just 7mm between them) and drastic chord reduction down to 55, 50, 45, 40 and 35mm, we found positive gains in speed, control, balance and feel. The Skinnies have inherited many of the same characterises that make our Progressive range so popular, like the precise feel and seamless turn initiation plus recovery. They are very low drag and free up speed and turning. Heavier riders and those less experienced will gravitate to the 55, 50 and 45 chord models, those who are lighter and or have greater experience might opt to reduce drag in the extreme and try the 40 or 35mm chord options.The Skinny rear wings inspire confidence by providing a more comfortable ride at speed, they reduce the normal buildup of front foot pressure that can be associated with high-speed foiling. They are a perfect match to ARTPRO foils, but keep in mind, your HPS, ART, PNG and even BSC, will equally benefit from the Skinny high-performance DNA.

Perfectely fitting both 16mm and 19mm Aluminium Masts

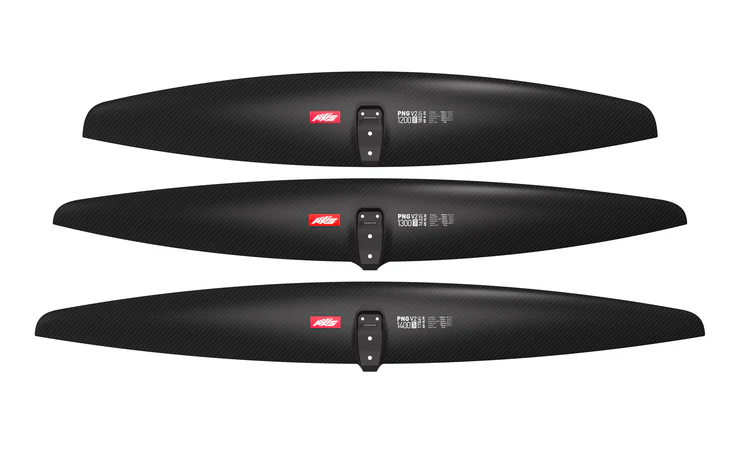

Introducing the AXIS PNGv2 1400 Carbon Front Wing, the largest and most advanced front wing in its class.Built on the back of the recent PNGv2 1300, and boasting the same foil section as our FIREBALL range, this beast has been engineered for unparalleled performance. The PNGv2 1400 does all the heavy lifting, thanks to a high aspect ratio nudging 11, delivering endless glide and exceptional pumping ability. Designed to dominate in the weakest foiling conditions, the PNGv2 1400 offers early lift and supreme control, making it the go-to choice for riders of all skill levels.Perfect for ultra-light-wind wingfoiling, light-wind SUP and DW, dock starts or effortless wake foiling behind a boat, the PNGv2 1400 will have you flying effortlessly with unmatched stability and efficiency. While not built for outright speed, its focus on ease and versatility makes it the ultimate high aspect wing for nearly every rider. With a wingspan of 1400mm, it’s over twice as stiff as smaller models, leveraging AXIS’s cutting-edge rigidity and construction for a solid, responsive ride.The PNGv2 1400 has been designed to fit seamlessly on our black fuselages using 2 x M8 and 2 x M6 screws. The new design features detailed graphics displaying all key measurements, including the aspect ratio, for quick reference and easy accessory swaps. Whether chasing endless glides or mastering minimal conditions, the AXIS PNGv2 1400 sets a new standard for glide, control, and accessibility in foiling.Pump and Glide. Re-defined.

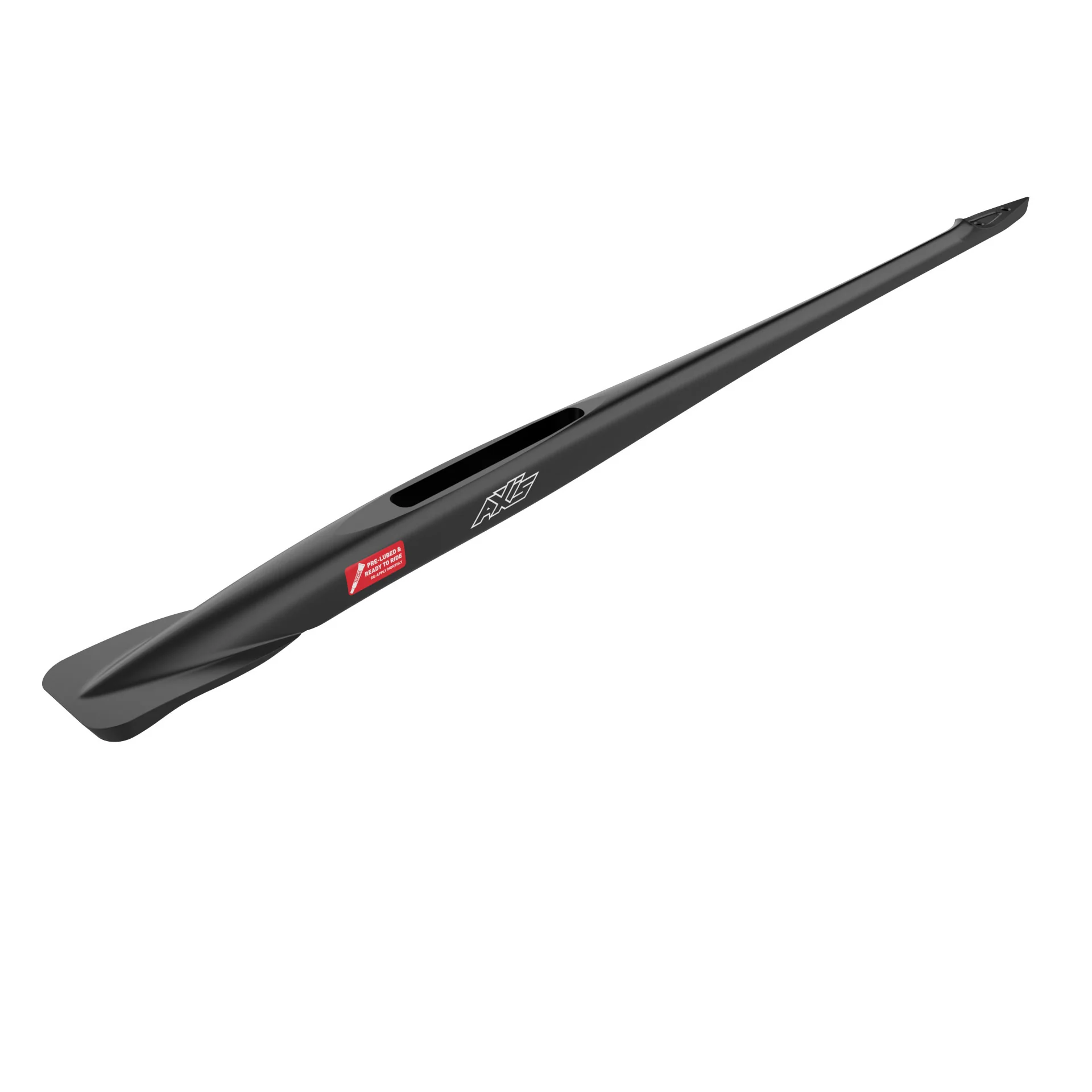

We’ve spent years refining mast positions to find the sweet spot between rider input and foil response. The new Advance+20 continues that legacy, circling back to the original Advance geometry, now completely re-engineered to meet the demands of modern foiling. It replaces an outdated design with a forward-thinking fuselage that delivers a smoother, more intuitive connection across every discipline.By positioning the mast 20mm closer to the front wing, the Advance +20 offers most of the benefits of our sportier Advance+ 60, but with a plush, composed ride that feels effortlessly balanced. It enhances how the foil moves through yaw and roll, softening inputs while maintaining agility and precision. From conplete beginners through to seasoned riders, the Advance+ 20 provides an intuitive blend of stability and control that suits a broad range of riders.Built on all our latest advancements – including zinc anodes, a slender rear profile, stronger and more positive mast connection, and the introduction of front bolt titanium inserts pioneered with the Fatty fuse – the Advance+20 represents a leap forward in connection, designed to feel natural from your first pump to your longest glide.
