F-ONE MONOBLOC TAIL CARVING 2026

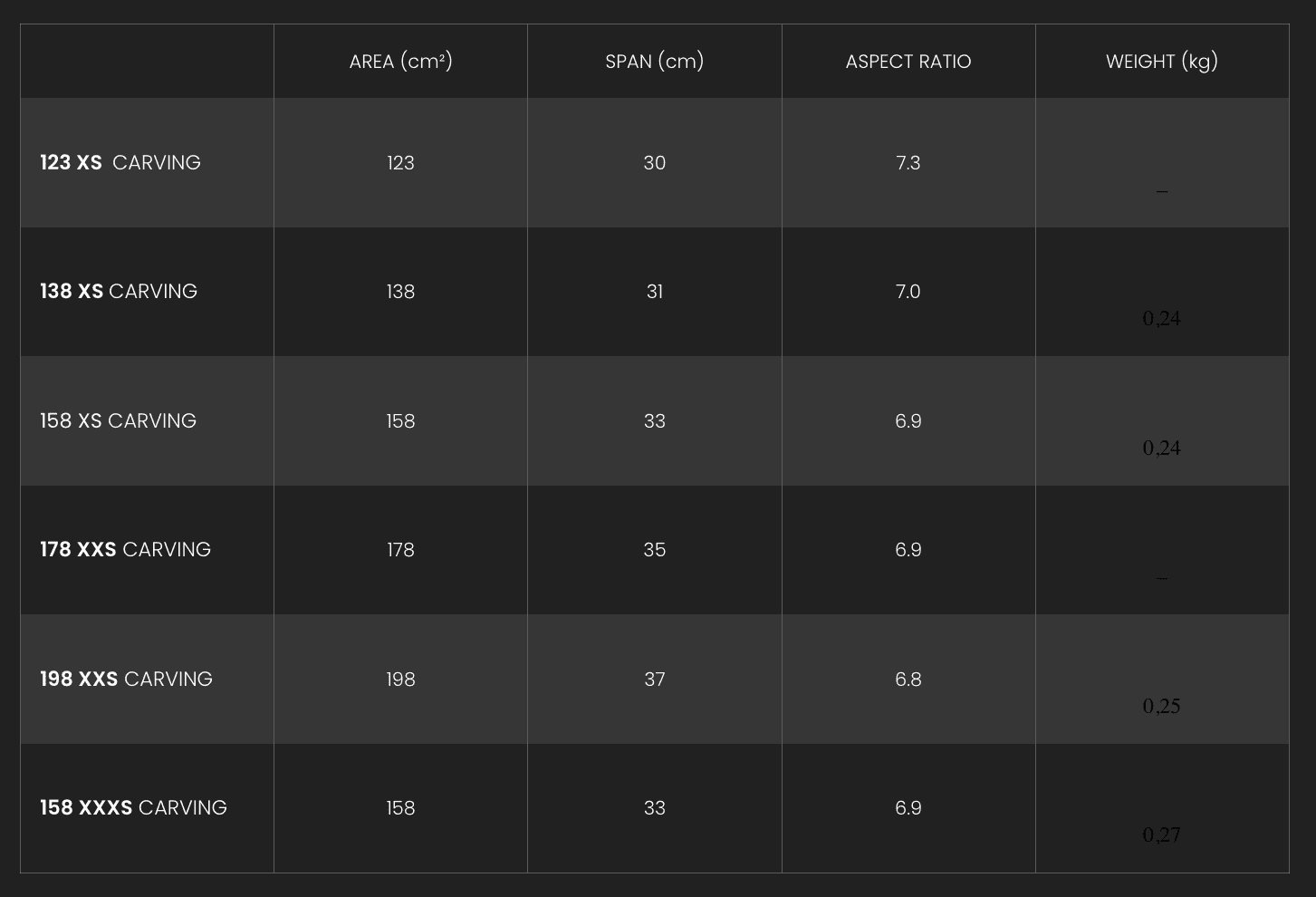

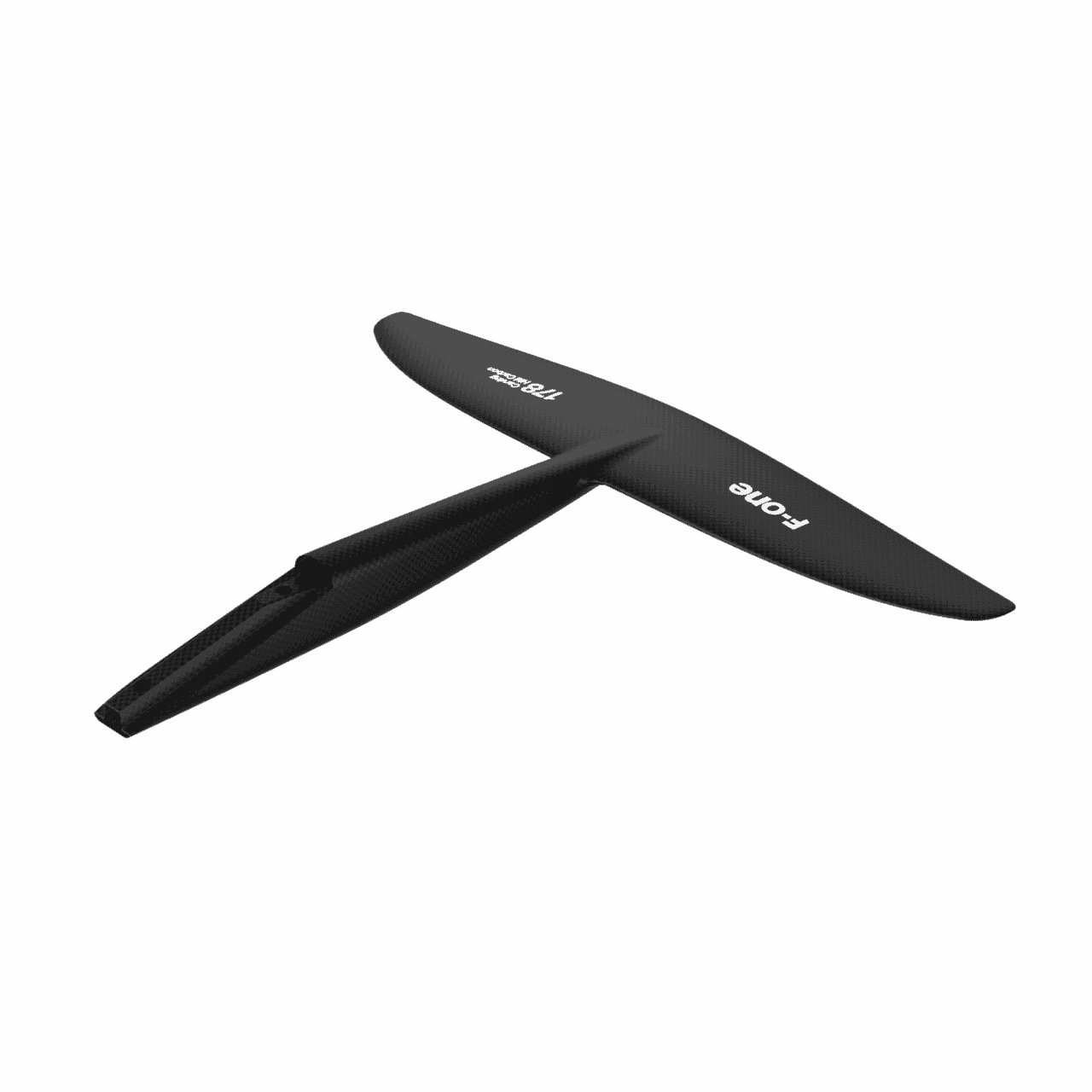

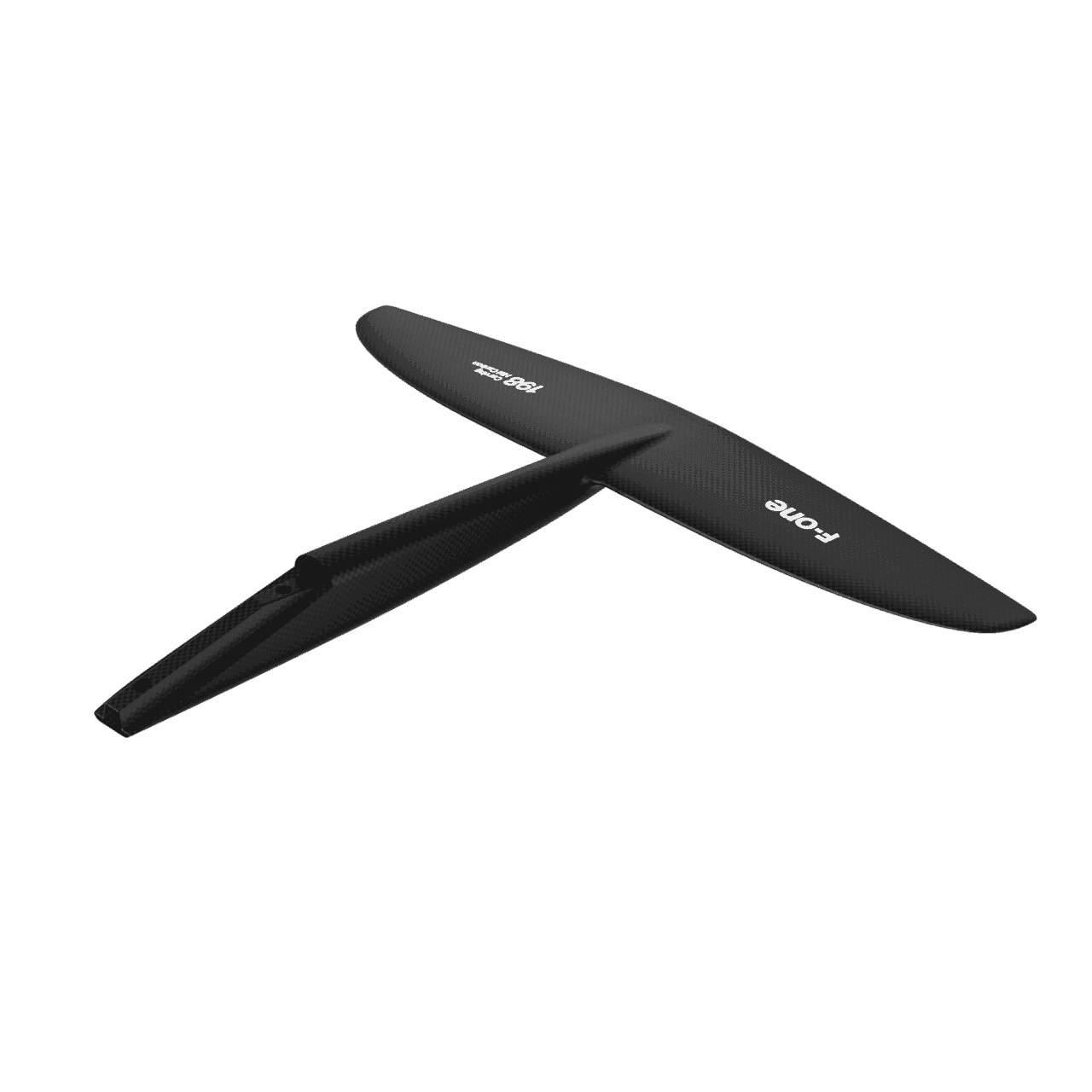

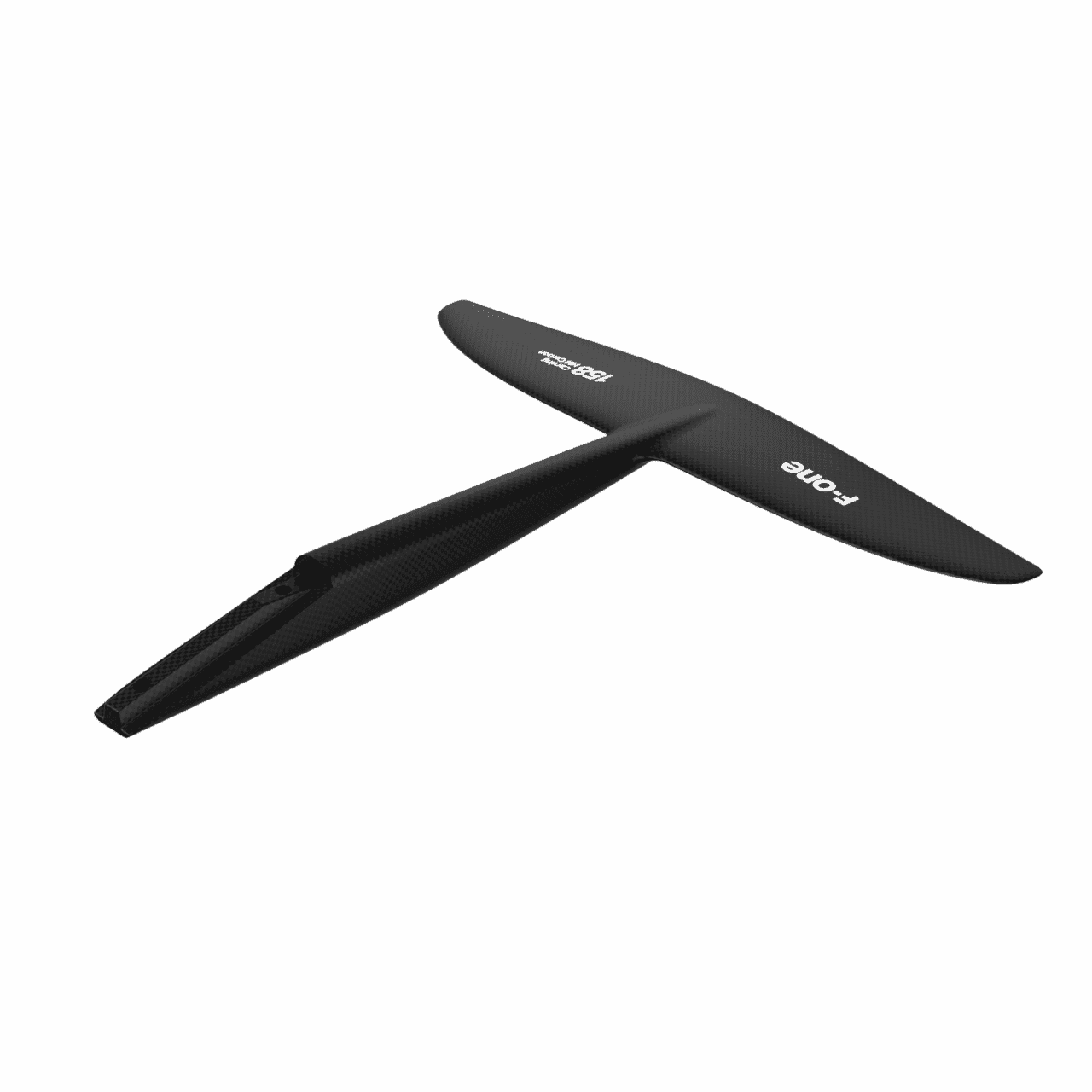

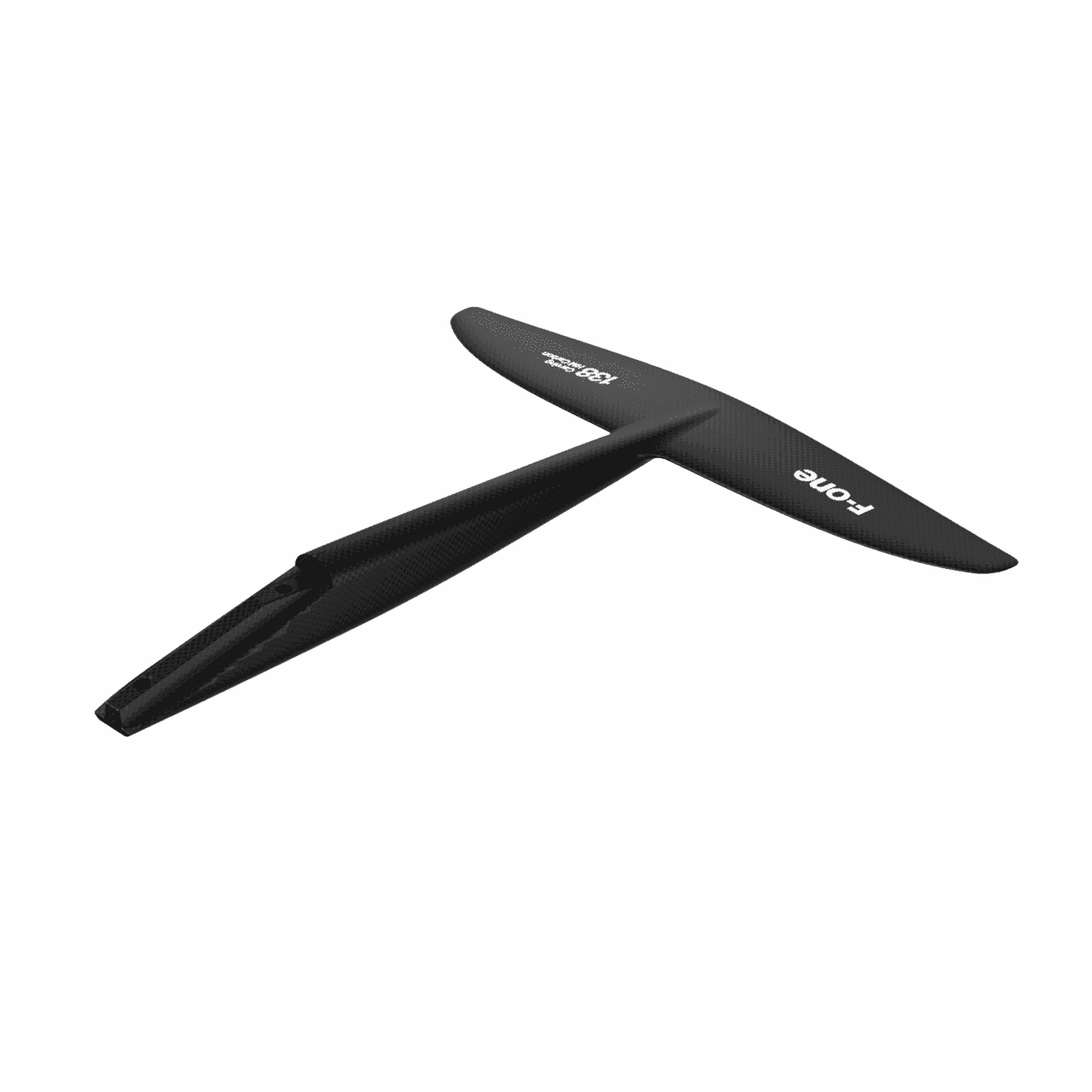

Overview New Monobloc Tail Carving range Brings together the best of the Carving and Carving W ranges Redesigned, more versatile, high-performance tail Revised, tighter outline Exceptional maneuverability, speed, efficient pumping and sharp turns New, refined outline for better glide and maneuverability Balanced feel between front and back foot Fast, responsive pumping Steady lift, stability and snappy turns Presentation Designed to excel in every carve and transition Pumping efficiency and playful, loose feel of the original Carving range Added stability, control at high speed and comfort of the Carving W Easy, responsive pumping on flat sections Glide tuned to hold speed and flow through your lines Improved maneuverability and glide Longer fuselage increases pitch stability Reduced surface area contributes to greater speed, responsiveness and maneuverability For wing foiling, surf foiling, K-Winging and pocket winging Technology HM Carbon High Modulus Carbon fiber layup 1.5x stiffer than regular carbon fiber Percentage of high modulus fiber adjusted for stiffness in bending and torsion Keeps enough comfort for any kind of practice Monobloc Tail Monobloc construction improves stiffness Reduces turbulence by eliminating connections Streamlined design More playful, more stable and faster Removes two screws Size range ModelAreaSpanAspect RatioWeight123 XS Carving123 cm²30 cm7.3–138 XS Carving138 cm²31 cm7.00,24 kg158 XS Carving158 cm²33 cm6.90,24 kg178 XXS Carving178 cm²35 cm6.9–198 XXS Carving198 cm²37 cm6.80,25 kg158 XXXS Carving158 cm²33 cm6.90,27 kg Sold with MONOBLOC TAIL CARVING Soft cover Packaging kit: 2x M6-25mm tapered head screws Available sizes 123 XS cm² 138 XS cm² 158 XS cm² 178 XXS cm² 198 XXS cm² 158 XXXS cm²

Ultra-stiff high-performance carbon mast for maximum control, glide and direct response The F-ONE UHM Carbon Mast 14 is built for heavier riders seeking even more stiffness, lightness, control and energy transfer. Developed to push performance further, it combines a thin profile with a highly refined carbon construction for unmatched rigidity and responsiveness on the water. Thin profile for speed, glide and efficient acceleration With its thin 14 mm profile, this mast slices cleanly through the water to reduce drag and improve acceleration, pumping efficiency and top-end speed. From the very first ride, it delivers a light, fast and direct feel, turning every leg input into instant glide and forward motion. This makes it especially effective for riders looking for total control while downwinding, freestyling or freeriding. Ultra High Modulus Carbon layup for maximum stiffness The custom Ultra High Modulus Carbon layup makes this mast 28% stiffer for exceptional rigidity and responsiveness. The result is precise control in both bending and torsion, excellent maneuverability and a highly direct feeling underfoot. The carbon fibers are carefully distributed lengthwise to optimize bending stiffness and at approximately 45° to optimize torsional stiffness. In addition, the layup is specifically tuned for each mast length to ensure the best performance in each discipline and condition. Full Monobloc construction with reinforced SPINE structure Molded in one shot from pre-preg carbon, the one-piece construction integrates a reinforced SPINE internal structure and benefits from F-ONE’s Dynamic Structural Design. This creates incredible rigidity while reducing drag to a minimum. The full Monobloc construction improves starts, glide, top speed and the overall connection between foil and board, while the optimized structure ensures excellent control and precision through turns. Updated TITAN 2 connection and top plate The mast features the new top plate and TITAN 2 mast foot at the bottom. The top plate is compatible with lockable T-nuts and includes the keyhole-shaped Quick-Attach System for faster assembly. The TITAN 2 connection improves structural efficiency and creates a stiffer, more direct connection between components. This helps deliver better glide, a more immediate feel and excellent reliability. The mast is compatible with virtually all boards featuring the Twin-Tracks system and with all front wings using the TITAN 2 connection. Key features Thin 14 mm profile Ultra High Modulus Carbon layup Optimized Dynamic Structural Design Reinforced SPINE structure Full Monobloc construction Ultimate rigidity and control at any speed Direct response in turns TITAN 2 connection for improved structural efficiency, better glide and a more direct feel Pre-preg carbon construction for light weight, strength and durability Compatible with Twin-Tracks boards and TITAN 2 front wings Program Efficiency: 90% Stiffness: 70% Sizes 75 cm 80 cm 85 cm 95 cm 105 cm

Ultra-thin high-performance carbon mast for maximum glide, speed and direct control The F-ONE UHM Carbon Mast 12 is crafted for riders who demand the very best in glide and performance. Developed with an ultra-thin profile and a highly refined construction, this mast is built to maximize speed, efficiency and direct control across demanding foil disciplines. Ultra-thin profile for exceptional glide and top-end speed With a profile measuring just 12 mm at its thinnest point, this mast is designed to minimize drag and maximize glide. Its tapered chord and thickness make it slightly wider and thicker at the top before narrowing toward the fuselage, creating a shape that helps generate more speed and efficiency on the water. This ultra-thin design makes it especially effective for downwind runs, high-speed wing foiling and kite foiling, while also helping riders gain more pop and height during tricks. UHM Carbon layup for increased rigidity and precision The custom Ultra High Modulus (UHM) Carbon layup makes this mast 25% stiffer in bending than the HM Carbon 14 mast. This provides exceptional rigidity and more precise control in both bending and torsion, resulting in a very direct feel underfoot and excellent maneuverability. The UHM Carbon fiber layup is also 1.2x stiffer than High Modulus Carbon and 1.8x stiffer than regular carbon fiber, giving this mast the structural performance needed for such a thin profile. Advanced one-piece construction with optimized internal structure Molded and cured in a single shot from carbon pre-preg, the one-piece construction integrates F-ONE’s optimized SPINE internal structure. This enhances rigidity, efficiency and control, especially through turns, while delivering a higher level of stiffness, precision and overall performance. The use of pre-preg technology ensures an optimized epoxy-to-carbon ratio, resulting in a lighter, stiffer and stronger construction with excellent durability. New TITAN 2 connection and updated top plate The mast features the new top plate and updated TITAN 2 mast foot at the bottom. The redesigned top plate is compatible with lockable T-nuts and includes the keyhole-shaped Quick-Attach System for faster assembly. The TITAN 2 connection improves structural efficiency, rigidity and reliability at the mast-to-foil connection. Built around a reinforced structure using only two M8 screws, it delivers a more direct feel, improved pumping and a stronger foil connection while maintaining excellent hydrodynamic performance. This mast is compatible with virtually all boards on the market featuring the Twin-Tracks system and with all front wings using the TITAN 2 connection. Key features Ultra-thin 12 mm profile Maximum glide and speed Increased rigidity for a direct feel and total control Custom Ultra High Modulus Carbon layup 25% stiffer in bending than the HM Carbon 14 mast Optimized SPINE technology for rigidity, efficiency and control One-piece carbon pre-preg construction New top plate with Quick-Attach System TITAN 2 connection for better structural efficiency and a more direct feel Compatible with Twin-Tracks boards and TITAN 2 front wings Program Efficiency / Glide: 100% Bending Stiffness: 95% Torsion Stiffness: 65% Sizes 75 cm 80 cm 85 cm 95 cm Sold with Three-piece soft cover 4x M6-25 mm tapered head screws 4x T-Nuts M6 User Guide

The new T-Nuts Sync system is designed to keep the T-Nuts linked together inside the rails, ensuring a consistent spacing and perfectly aligned installation. It slightly locks their position while allowing both T-Nuts to slide smoothly and simultaneously, making foil assembly and adjustments much easier.  With the T-Nuts Sync system, you save time during setup, prevent any loss or misalignment of the T-Nuts, and can easily fine-tune your settings in just a few simple steps.

F-ONE Foil Technology Monobloc Tail DW Feel the connection. Die neuen Monobloc Tails DW wurden entwickelt, um deine Downwind-Sessions mit mehr Glide, Kontrolle und Effizienz zu maximieren. Durch die verfeinerte Outline und den längeren Fuselage bieten sie eine perfekte Balance aus Stabilität und Vorwärtsdrang für High-Performance Foiling unter allen Bedingungen. Optimiert für erfahrene Downwind-Rider Entwickelt für hohe Geschwindigkeiten und Offshore-Surfing Längerer Fuselage = Höhere Pitch-Stabilität Maßgeschneidert für SEVEN SEAS und EAGLE X Frontwings Monobloc Tail Die Monobloc-Konstruktion verbessert die Steifigkeit und reduziert Turbulenzen, indem sie unnötige Verbindungen und Schrauben eliminiert. Das Ergebnis ist ein extrem stromlinienförmiges Design und ein direktes Fahrgefühl. UHM Carbon Das Ultra High Modulus Carbon Layup sorgt für maximale Steifigkeit und sofortiges Feedback. Perfekt für Rider, die keine Kompromisse bei der Präzision und Kontrolle eingehen wollen. Technical Specifications Size Area (cm²) Span (cm) Aspect Ratio Weight (kg) 136 XS DW 136 35 9.0 0.24 156 XXS DW 156 37.5 9.0 0.24 176 XXS DW 176 40 9.1 0.25 Recommended Plane / Setup Monobloc Tail 136 XS DW 156 XXS DW 176 XXS DW First Choice(Recommended) EAGLE X 500 / 600EAGLE X 700 / 800 EAGLE X 900EAGLE X 1000 - Second Choice(Level dependent) Seven Seas 1100 / 1200Eagle 690 / 790 / 890Momentum 516 / 616 / 716 Seven Seas 1100 / 1200 / 1300Eagle 1090Momentum 816 Seven Seas 1400 / 1500 / 1600Eagle 1190 / 1290Momentum 916 Sold With / Lieferumfang 1x MONOBLOC TAIL DW (in gewählter Größe) 1x Soft Cover (Schutzhülle) Packaging Kit: 2x M6-25mm tapered head screws (Schrauben) CURRENT TECHNICAL SPECIFICATIONS! ALL RIGHTS RESERVED TO IMPROVE / MODIFY / CHANGE ANY PRODUCT AT ANY TIME!

The F-ONE aluminum mast can be connected to the board with several options. Choose from a 4-bolt top plate, a standard Tuttle head, a KF or a DKF head. All versions are fastened to the mast through a sleeve and a two-bolt system. The Mast Top parts are machined out of solid blocks of 6061 aluminum. The accuracy of the CNC makes sure the geometry of the connection is perfect. Stainless steel inserts are used systematically to preserve the durability of the fastening connections. The Top Plate has become standard on the market and is compatible with any board featuring a Twin-Tracks system. The spacing we use for the four screws is 160×90 mm, but our latest version also features an option for 165×90 mm. The Top Tuttle makes F-ONE foils compatible with all Tuttle boards. The Tuttle format is the original and standard one. A flange has been added around the base of the head to better spread the load through the structure of the board. The KF and DKF heads make current F-ONE foils compatible with kite or SUP foil boards produced previously with these boxes. Refs: 77207-0401 (mast top plate) / 77207-0404 (mast top tuttle) / 77207-0403 (mast top deep kf) / 77207-0402 (mast top kf)

ALU MAST 45 > 95 CM The F-ONE aluminium mast can be used for all disciplines, kite, surf, stand up paddle, wing foil and windsurf. The profile is extruded with precision from 6063 aluminium block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another (45 / 55 / 65 / 75 / 85 / 95 cm). A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).
