F-ONE Pocket Carbon Foilboard 2022

Carving is (still) not a crime Overview Intuitive, responsive and fun foil Refined design and improved construction Surf-like feel More glide, control and carving freedom Aspect Ratio: 8.0 New profile for balanced front-to-back foot pressure Refined outline and wingtips for improved roll and maneuverability Agile across the full speed range, even when overpowered Most versatile foil in the range TITAN 2 connection for improved structural efficiency, better glide and a more direct feel Dynamic Structural Design with optimized carbon layup for increased control and stability Program Roll: 90% Carving: 100% Glide: 75% Speed: 75% Presentation Third-generation SK8 Refined profile and outline Designed for a surf-like feel Steady pressure at all times Narrower wingtips Perfected carbon layup Fast and playful feel Improved maneuverability, comfort and low-end efficiency Handles tip breaches with ease Tight turns and clean transitions Works across a wider range of conditions Maintains full maneuverability across the entire speed range For carving small waves, open-ocean bumps, foam hits and linking turns For winging with high-speed glide and natural upwind ability Technology TITAN 2 Connection Revised design for efficiency, rigidity and reliability Uses two M8 screws Reinforced structural connection Improved precision and responsiveness More direct feel underfoot Improved pumping Stronger connection to the foil Dynamic Structural Design Carbon fiber layup tailored to the foil’s program and use Fine-tuned layup for maneuverability, comfort, stiffness and pumping efficiency HM Carbon High Modulus Carbon fiber layup 1.5x stiffer than regular carbon fiber Adjusted high modulus fiber percentage for bending and torsion stiffness Keeps enough comfort for any kind of practice Monobloc Front Wing Front wing molded together with the fuselage Stiff and solid assembly Removes unwanted movement between parts Provides control and direct foil response Pre Preg Technology Stiffer and stronger foils Carbon fiber directly impregnated with epoxy resin High-quality process Light weight with strong mechanical properties Size range ModelAreaSpanAspect RatioWeightSK8 HM Carbon 550550 cm²67 cm8.20.93 kgSK8 HM Carbon 650650 cm²72.5 cm8.10.99 kgSK8 HM Carbon 750750 cm²77.5 cm8.01.09 kgSK8 HM Carbon 850850 cm²82.5 cm8.01.20 kgSK8 HM Carbon 950950 cm²87 cm8.01.26 kgSK8 HM Carbon 10501050 cm²91.5 cm8.01.39 kgSK8 HM Carbon 11501150 cm²96 cm8.01.50 kg Sold with FW SK8 HM Carbon EVA Soft cover Packaging kit: 2x M8-25mm tapered head screws Torx key T30 – T40 User Guide Available sizes 550 cm² 650 cm² 750 cm² 850 cm² 950 cm² 1050 cm² 1150 cm²

The F-ONE aluminum mast can be connected to the board with several options. Choose from a 4-bolt top plate, a standard Tuttle head, a KF or a DKF head. All versions are fastened to the mast through a sleeve and a two-bolt system. The Mast Top parts are machined out of solid blocks of 6061 aluminum. The accuracy of the CNC makes sure the geometry of the connection is perfect. Stainless steel inserts are used systematically to preserve the durability of the fastening connections. The Top Plate has become standard on the market and is compatible with any board featuring a Twin-Tracks system. The spacing we use for the four screws is 160×90 mm, but our latest version also features an option for 165×90 mm. The Top Tuttle makes F-ONE foils compatible with all Tuttle boards. The Tuttle format is the original and standard one. A flange has been added around the base of the head to better spread the load through the structure of the board. The KF and DKF heads make current F-ONE foils compatible with kite or SUP foil boards produced previously with these boxes. Refs: 77207-0401 (mast top plate) / 77207-0404 (mast top tuttle) / 77207-0403 (mast top deep kf) / 77207-0402 (mast top kf)

ALU MAST 45 > 95 CM The F-ONE aluminium mast can be used for all disciplines, kite, surf, stand up paddle, wing foil and windsurf. The profile is extruded with precision from 6063 aluminium block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another (45 / 55 / 65 / 75 / 85 / 95 cm). A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

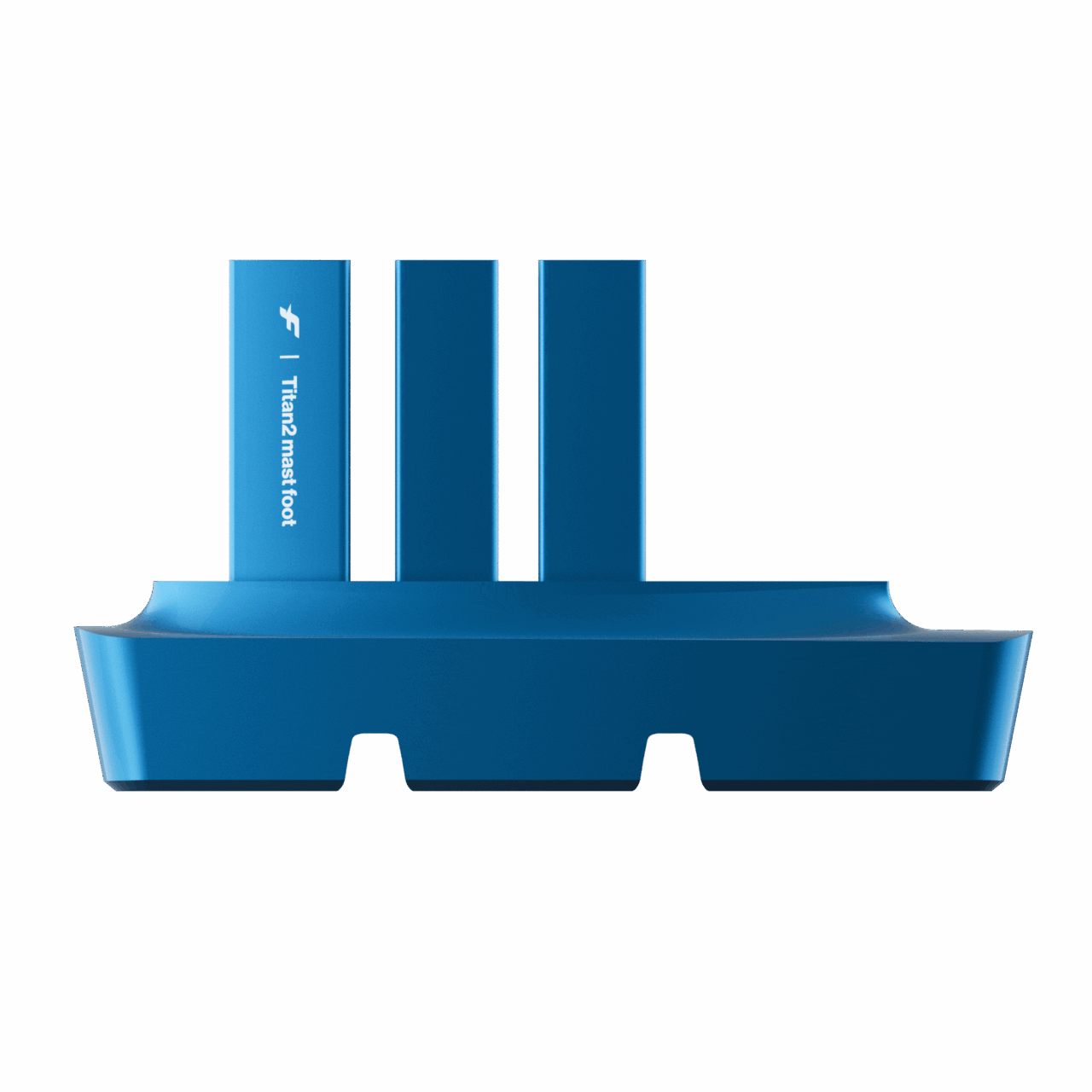

TITAN Mast Foot V2 The TITAN Mast Foot V2 is the connecting part that makes F-ONE aluminum masts compatible with all TITAN V2 fuselages and wings. It is made of superior-grade aluminum 6061, CNC machined with high precision and fully anodized. To install the TITAN Mast Foot V2, it should be inserted into the bottom end of the aluminum mast and fastened with two M6x25mm tapered head screws. Technology Aluminium 6063 & 6061 This aluminum alloy boasts very good mechanical properties and can be processed in many ways while also offering a natural resistance to corrosion. Produced from an extrusion process, F-ONE aluminum profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions. Machining blocks of aluminum 6061 guarantees maximum accuracy and preserves the mechanical properties of this higher grade of aluminum. All parts are fully anodized and stainless-steel inserts are fitted with insulating gel when fastening is required. TITAN 2 Connection The TITAN 2 connection introduces a revised design to deliver even greater efficiency, rigidity and reliability at the critical junction between the mast and foil. Building on the compact, stiff and easy-to-assemble format that made the original TITAN so effective, the TITAN 2 uses only two M8 screws and benefits from a reinforced structural connection. The result is improved precision and responsiveness while maintaining excellent hydrodynamic performance. Riders benefit from a more direct feel underfoot, improved pumping and a stronger connection to the foil in all conditions. This added stiffness also allows riders to stand higher on the mast, helping reduce drag and optimize glide. Technical Details Product Material Compatibility Installation Reference TITAN Mast Foot V2 Aluminum 6061, CNC machined and fully anodized F-ONE aluminum masts with TITAN V2 fuselages and wings Inserted into the bottom end of the aluminum mast and fastened with two M6x25mm tapered head screws 77267-0200
