F-ONE SK8 HM Carbon (T2) 2026
1.239,00 €*
Sofort versandfertig, Lieferung in ca. 2-5 Werktagen
Produktinformationen "F-ONE SK8 HM Carbon (T2) 2026"
Carving is (still) not a crime
Overview
- Intuitive, responsive and fun foil
- Refined design and improved construction
- Surf-like feel
- More glide, control and carving freedom
- Aspect Ratio: 8.0
- New profile for balanced front-to-back foot pressure
- Refined outline and wingtips for improved roll and maneuverability
- Agile across the full speed range, even when overpowered
- Most versatile foil in the range
- TITAN 2 connection for improved structural efficiency, better glide and a more direct feel
- Dynamic Structural Design with optimized carbon layup for increased control and stability
Program
- Roll: 90%
- Carving: 100%
- Glide: 75%
- Speed: 75%
Presentation
- Third-generation SK8
- Refined profile and outline
- Designed for a surf-like feel
- Steady pressure at all times
- Narrower wingtips
- Perfected carbon layup
- Fast and playful feel
- Improved maneuverability, comfort and low-end efficiency
- Handles tip breaches with ease
- Tight turns and clean transitions
- Works across a wider range of conditions
- Maintains full maneuverability across the entire speed range
- For carving small waves, open-ocean bumps, foam hits and linking turns
- For winging with high-speed glide and natural upwind ability
Technology
-
TITAN 2 Connection
- Revised design for efficiency, rigidity and reliability
- Uses two M8 screws
- Reinforced structural connection
- Improved precision and responsiveness
- More direct feel underfoot
- Improved pumping
- Stronger connection to the foil
-
Dynamic Structural Design
- Carbon fiber layup tailored to the foil’s program and use
- Fine-tuned layup for maneuverability, comfort, stiffness and pumping efficiency
-
HM Carbon
- High Modulus Carbon fiber layup
- 1.5x stiffer than regular carbon fiber
- Adjusted high modulus fiber percentage for bending and torsion stiffness
- Keeps enough comfort for any kind of practice
-

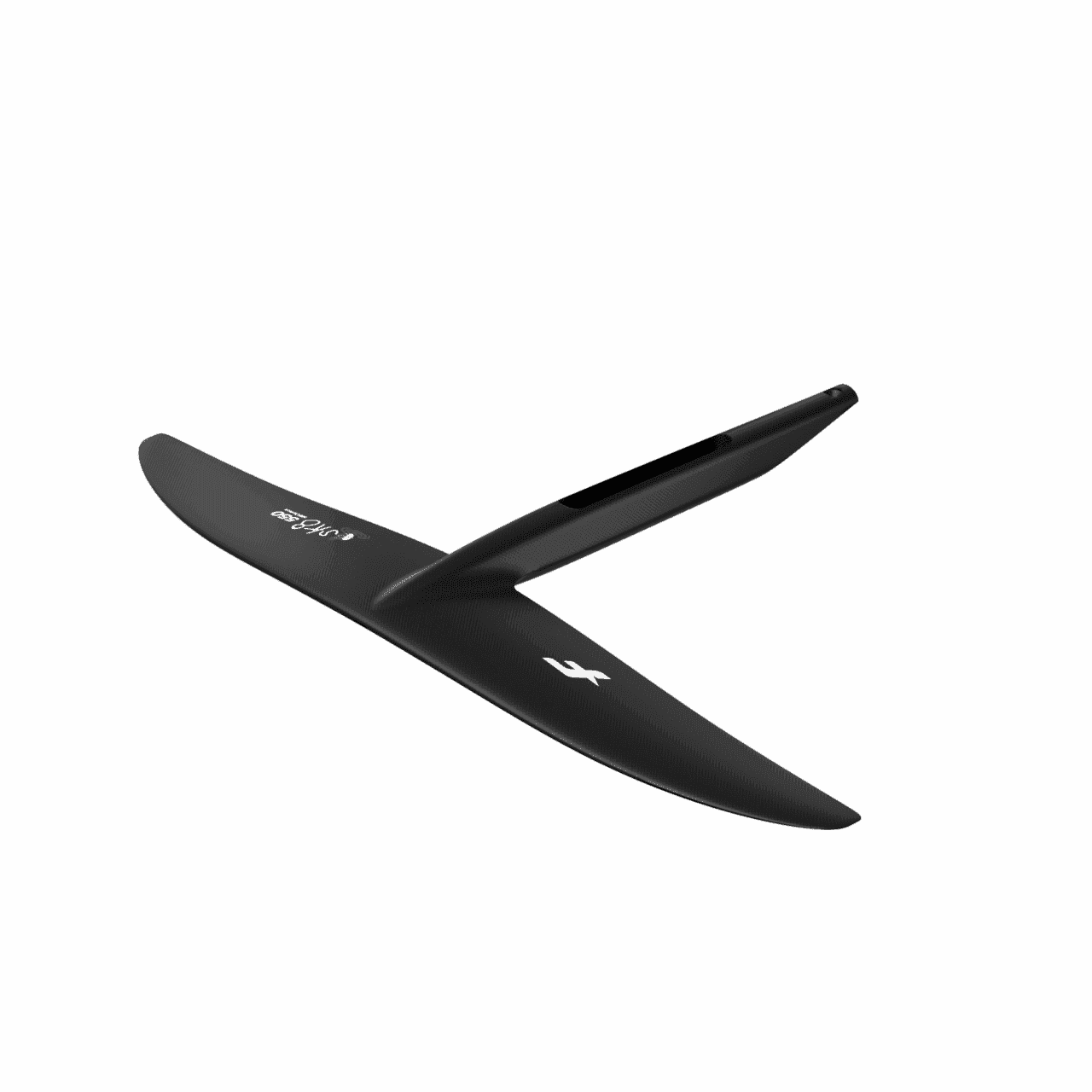

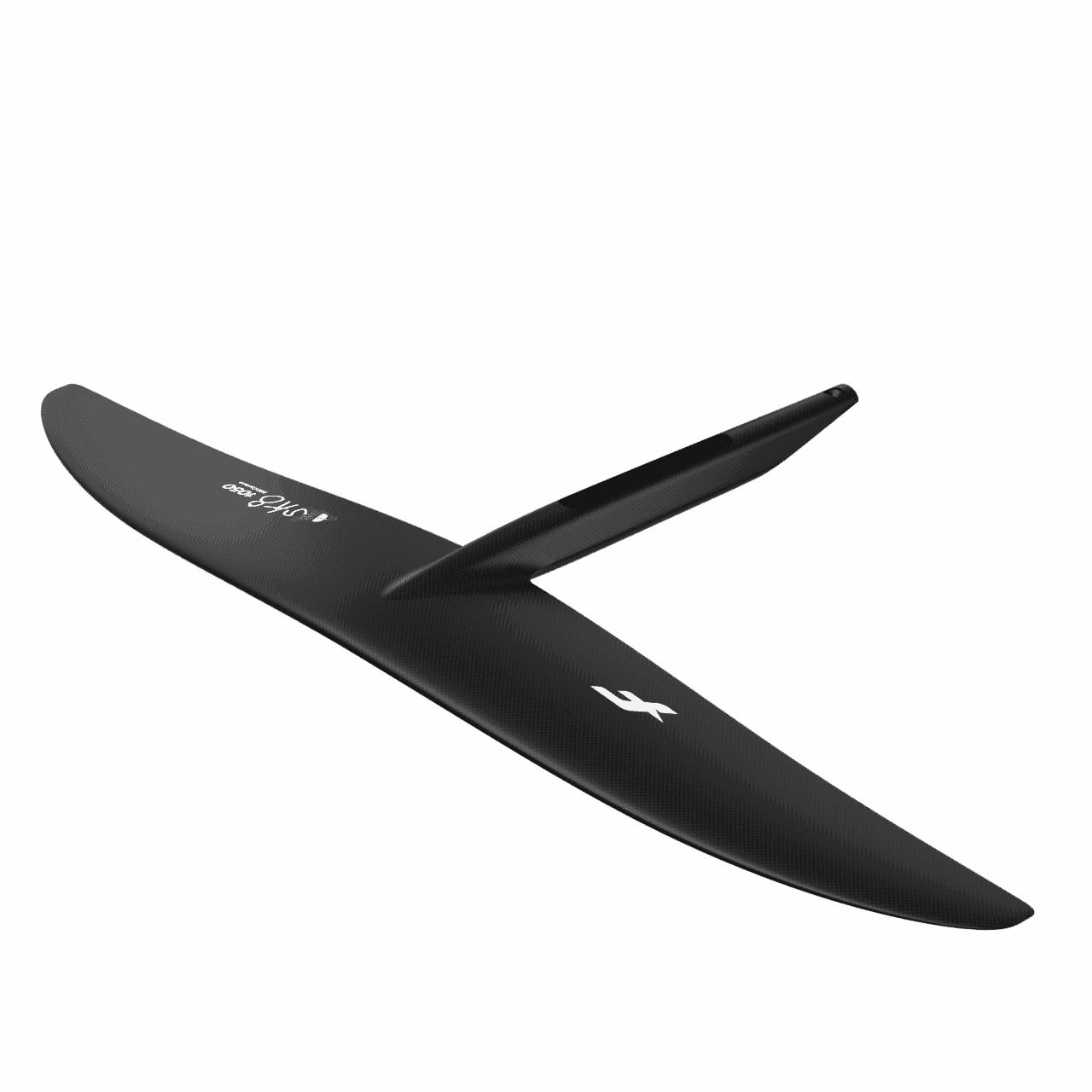

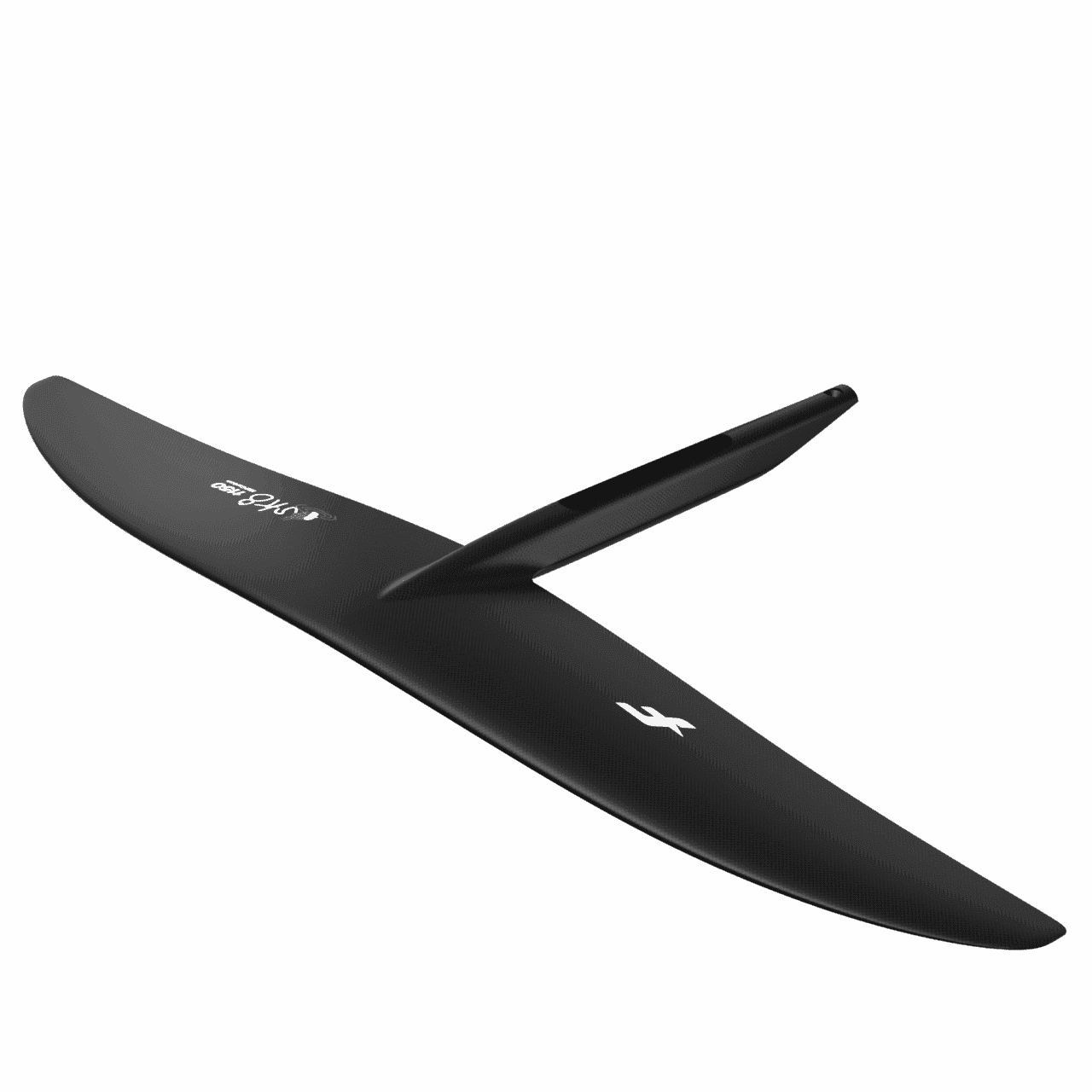

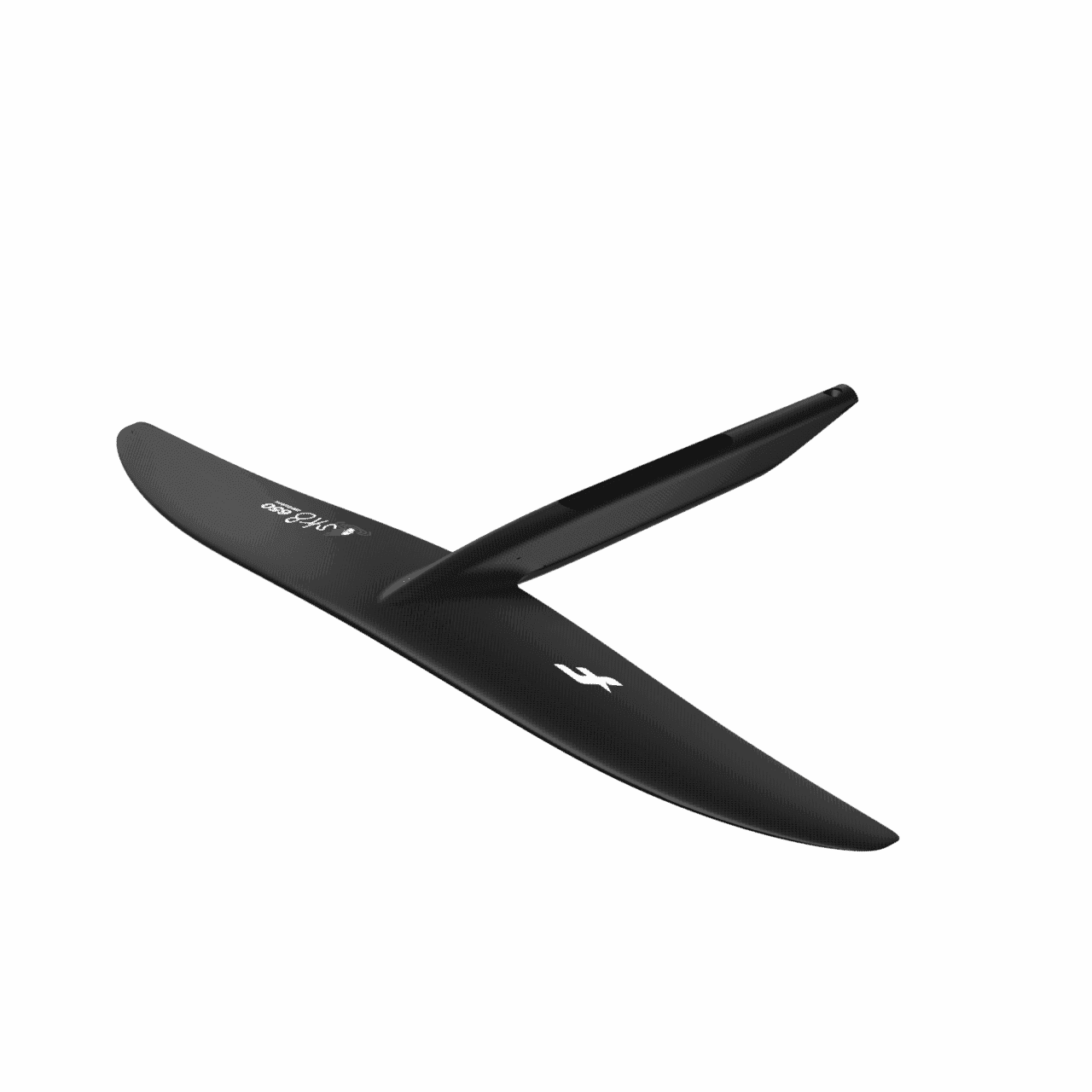

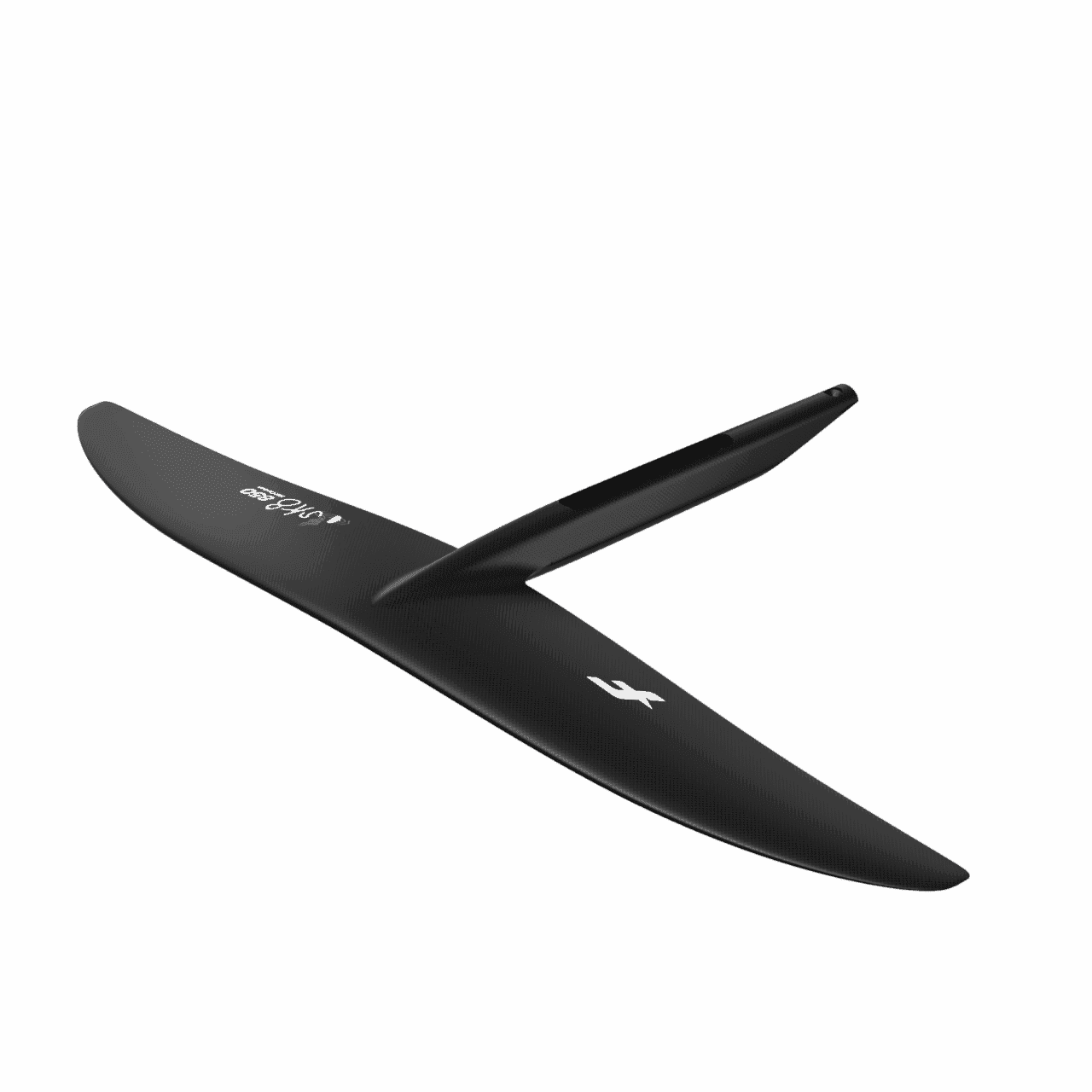

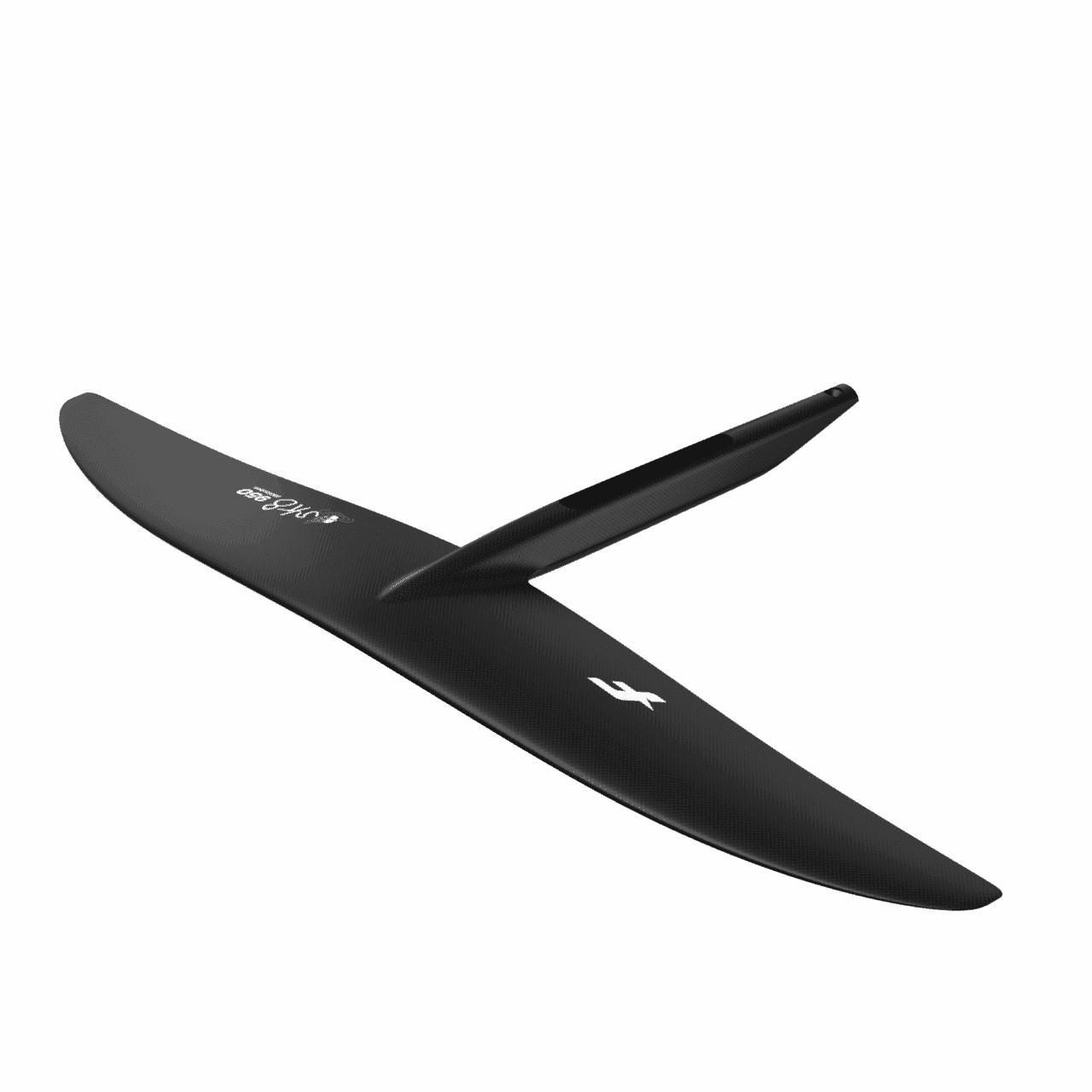

Monobloc Front Wing
- Front wing molded together with the fuselage
- Stiff and solid assembly
- Removes unwanted movement between parts
- Provides control and direct foil response
-
Pre Preg Technology
- Stiffer and stronger foils
- Carbon fiber directly impregnated with epoxy resin
- High-quality process
- Light weight with strong mechanical properties
Size range
| Model | Area | Span | Aspect Ratio | Weight |
|---|---|---|---|---|
| SK8 HM Carbon 550 | 550 cm² | 67 cm | 8.2 | 0.93 kg |
| SK8 HM Carbon 650 | 650 cm² | 72.5 cm | 8.1 | 0.99 kg |
| SK8 HM Carbon 750 | 750 cm² | 77.5 cm | 8.0 | 1.09 kg |
| SK8 HM Carbon 850 | 850 cm² | 82.5 cm | 8.0 | 1.20 kg |
| SK8 HM Carbon 950 | 950 cm² | 87 cm | 8.0 | 1.26 kg |
| SK8 HM Carbon 1050 | 1050 cm² | 91.5 cm | 8.0 | 1.39 kg |
| SK8 HM Carbon 1150 | 1150 cm² | 96 cm | 8.0 | 1.50 kg |
Sold with
- FW SK8 HM Carbon
- EVA Soft cover
-
Packaging kit:
- 2x M8-25mm tapered head screws
- Torx key T30 – T40
- User Guide
Available sizes
- 550 cm²
- 650 cm²
- 750 cm²
- 850 cm²
- 950 cm²
- 1050 cm²
- 1150 cm²
