SABFOIL M75/BB-INT - Piantone Blackbird 75 UMH W-Core | Integrated System
989,00 €*
Sofort versandfertig, Lieferung in ca. 2-5 Werktagen
Produktinformationen "SABFOIL M75/BB-INT - Piantone Blackbird 75 UMH W-Core | Integrated System"
Pure Speed, Absolute Control
The Piantone Blackbird 75 UMH W-Core | Integrated System Sabfoil is a Blackbird mast in high-modulus carbon with W-Core technology.
With a race-optimized profile, extreme stiffness and instant reactivity, it is designed for top performance in any condition.
Designed with a profile as fast as a pure racing mast, it features a slightly increased chord, precisely optimized to deliver the perfect balance between speed, instant responsiveness and ultimate maneuverability.
Integrated System

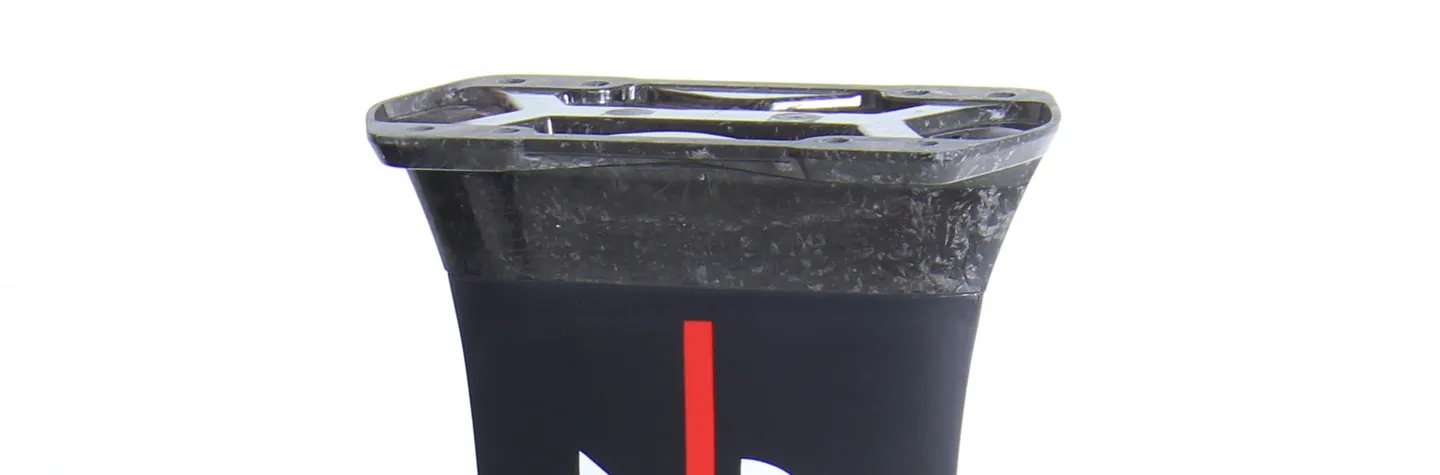

The M75/BB-INT combines the proven performance of the Blackbird mast with the new SABFOIL Integrated System.
Thanks to an advanced carbon lamination process, the mast and plate become a true one-piece structure, reducing weight while increasing overall stiffness and responsiveness.
The result is an even more direct connection between rider and foil, without changing the ride characteristics of the Blackbird mast.
Advanced Technology for Uncompromising Performance

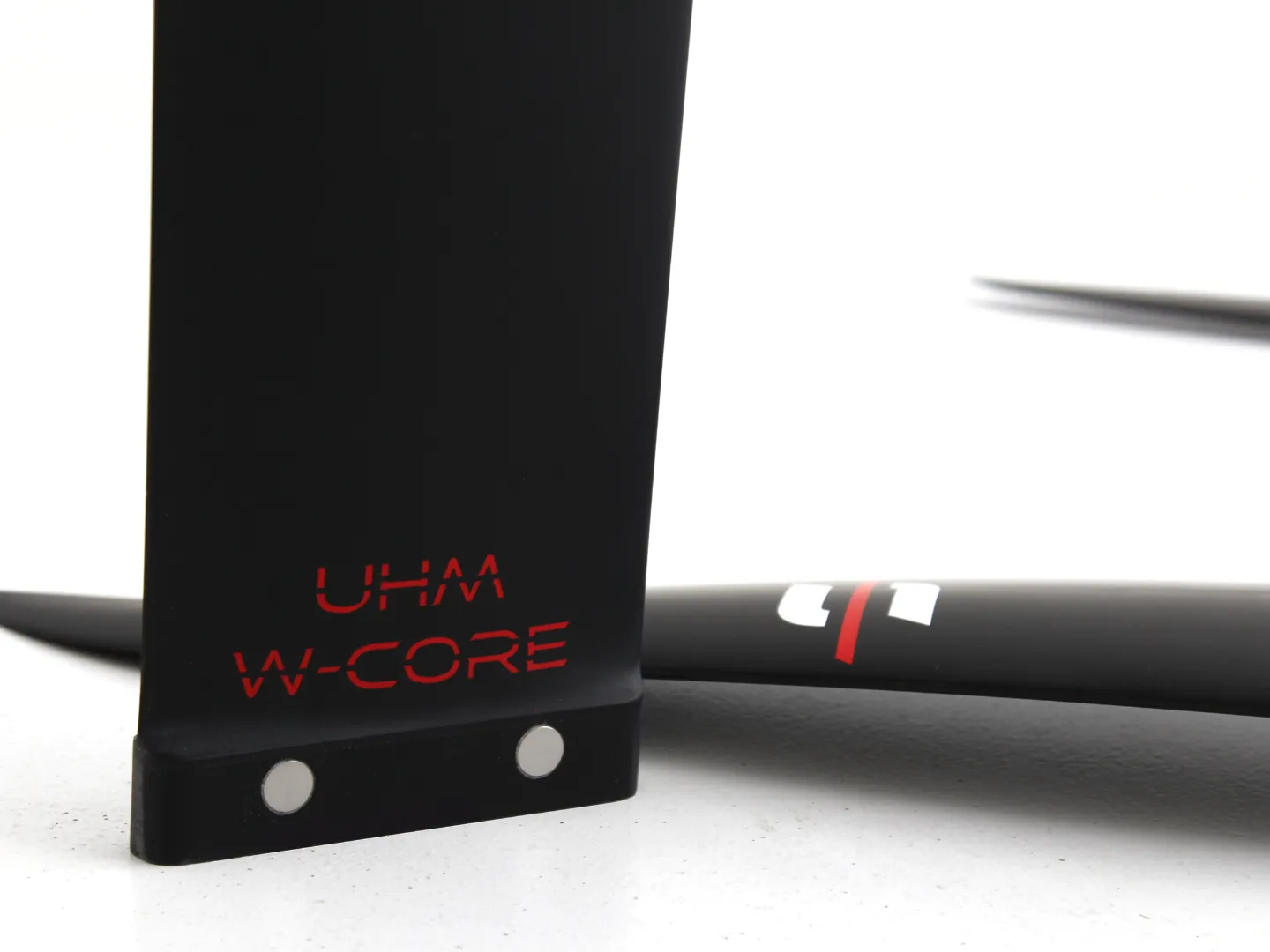

Built from high-modulus carbon, the Blackbird mast delivers exceptional stiffness while maintaining excellent resilience thanks to W-Core technology, which optimizes the weight-to-performance ratio.
The result is a smooth yet powerful riding experience, able to unlock maximum performance in every condition.
Who It’s Made For
- Ambitious riders seeking maximum speed and stability
- Freestylers and wave riders demanding instant reactivity
- Foil enthusiasts looking for the best stiffness-to-weight ratio
- Riders who accept nothing but the best, in all conditions
Key Performance Areas
- Bending stiffness
- Torsional stiffness
- Speed
- Reactivity
Main Specs
| Product | SKU | System | Material | Connection System | Height | Range |
| Piantone Blackbird 75 UMH W-Core | Integrated System Sabfoil | M75/BB-INT | Integrated System | UHM Carbon - W-Core | R8 | 750 mm | Blackbird |
Dimensions & Advanced Specs
| Spec | Value |
| Mast - Height | 750 mm |
| Mast - Thickness A | 17,3 mm |
| Mast - Thickness B | 15,3 mm |
| Mast - Thickness C | 13,5 mm |
| Mast - Chord A | 148,4 mm |
| Mast - Chord B | 131,5 mm |
| Mast - Chord C | 120 mm |
| Mast - Material | UHM + W-Core |
| Mast - Fuselage Connection Type | R8 |
Compatible Fuselages
| Compatible Product | Code |
| Fuselage 1003 T6/R8 | F1003K |
| Fuselage 603 T6/R8 | F603K |
| Fuselage 653 T6/R8 | F653K |
| Fuselage 663 T8/R8 | F663K |
| Fuselage 703 T8/R8 | F703K |
| Fuselage 713 T6/R8 | F713K |
| Fuselage 753 T8/R8 | F753K |
| Fuselage 903 T8/R8 | F903K |
Content
- Piantone Blackbird 75 UMH W-Core | Integrated System Sabfoil x 1
